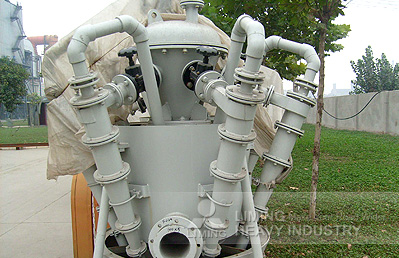

Cyclone
Feeding Size:
Capacity: 30-3150 m3/h
Processing materials：
Cyclone system is widely used in grinding, slurry dewatering, removing mud, micro-fine material classification, as well as tailings filling, dams, recycling and other processes.
The cyclone is widely used inc losed-circuit grinding system of Chinese black, colored, non-metallic mines;slurry dewatering, removing mud, micro-fine material grading,and tailings filling,dams,recycling and other process.As the cyclone is high classification efficiency, simple structure, large capacity, small footprint, etc., so it is widely favored by users.
Cyclone Specifications
| Model Specification | Diameter (mm) | Cone angle | Classifying particle size (mm) | Processing capacity (m3/h) | Overflow opening Diameter (mm) | opening area (m㎡) | Sediment opening diameter (mm) | Weight (kg) |
| FXK150×4 | 150 | 20 | 35-75 | 30-60 | 25、32、40、50 | 22×22 | 16、24、32 | 1680 |
| FXK150×8 | 150 | 20 | 35-75 | 60-120 | 25、32、40、50 | 22×22 | 16、24、32 | 2236 |
| FXK150×12 | 150 | 20 | 35-75 | 90-180 | 25、32、40、50 | 22×22 | 16、24、32 | 3074 |
| FXK300×4 | 300 | 20 | 45-105 | 148-172 | 65、75 | 47×60 | 35、40 | 2530 |
| FXK300×6 | 300 | 20 | 45-105 | 222-258 | 65、75 | 47×60 | 35、40 | 3477 |
| FXK350×4 | 350 | 20 | 50-110 | 296-360 | 95、105、115 | 80×65 | 60、70、80 | 3550 |
| FXK350×6 | 350 | 20 | 50-110 | 384-440 | 95、105、115 | 80×65 | 60、70、80 | 5597 |
| FXK350×12 | 350 | 20 | 50-110 | 888-1080 | 140、160、180 | 110×120 | 60、70、80 | 10537 |
| FXK500×4 | 500 | 20 | 60-120 | 680-880 | 140、160、180 | 110×120 | 70、90、110 | 6645 |
| FXK500×6 | 500 | 20 | 60-120 | 1020-1320 | 140、160、180 | 110×120 | 70、90、110 | 8870 |
| FXK660×6 | 660 | 20 | 70-150 | 1830-3150 | 203、254、305 | 225×115 | 152 | 18057 |
Notice: Any change of Cyclone technical data shall not be advised additionally.
