Feeding Size: 0-400 mm
Capacity: 70-1200t/h
Processing materials：
Building materials, mining, chemical industry, cement and other industrial departments.

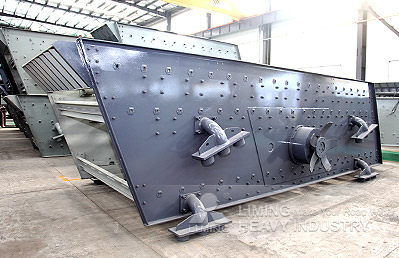

YKN series vibrating screen, which is successfully developed on base of 30 years experience in designing of vibrating screen and combination with advanced international vibrating screen manufacturing technology, is high-efficiency vibrating screen of high strength and large vibration force.
YKN series vibrating screen adopts lumpish eccentric vibrator of N series. The intermediate transmission connection adopts flexible connection, which is of larger amplitude and more smooth vibration, thus it significantly increases the through capacity and screening efficiency of the vibrating screen and ensures the reliability and longevity of the equipment.
YKN Series Vibrating Screen Specifications
| Model | Screen area（m²） | Installation angle（°） | Sieve size（mm） | The Max. Screen size（mm） | Number of vibration（r/min） | double amplitude（mm） | Installed power（kW) | Capacity（t/h） |
| 2YKN1860 | 2x10.8 | 20 | 5~150 | 400 | 800-900 | 5~9 | 22 | 70~400 |
| 3YKN1860 | 3x10.8 | 20 | 5~150 | 400 | 800-900 | 5~9 | 22 | 70~400 |
| 4YKN1860 | 4x10.8 | 20 | 5~150 | 400 | 800-900 | 5~9 | 30 | 70~400 |
| 2YKN2160 | 2x12.6 | 20 | 5~150 | 400 | 800-900 | 7~11 | 30 | 100~600 |
| 3YKN2160 | 3x12.6 | 20 | 5~150 | 400 | 800-900 | 7~11 | 37 | 100~600 |
| 4YKN2160 | 4x12.6 | 20 | 5~150 | 400 | 800-900 | 7~11 | 45 | 100~600 |
| 2YKN2460 | 2x14.4 | 20 | 5~150 | 400 | 800-900 | 7~11 | 30 | 150~850 |
| 3YKN2460 | 3x14.4 | 20 | 5~150 | 400 | 800-900 | 7~11 | 37 | 150~850 |
| 4YKN2460 | 4x14.4 | 20 | 5~150 | 400 | 800-900 | 7~11 | 45 | 150~850 |
| 2YKN3072 | 2x21.6 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×37 | 200~1200 |
| 3YKN3072 | 3x21.6 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×37 | 200~1200 |
| 2YKN3672 | 2x25.92 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×45 | 240~1650 |
| 3YKN3672 | 3x25.92 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×45 | 240~1650 |
| 2YKN3075 | 2x22.5 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×37 | 200~1200 |
| 3YKN3075 | 3x22.5 | 20 | 5~120 | 300 | 700-900 | 7~10 | 2×37 | 200~1200 |
Notice: Any change of YKN Series Vibrating Screen technical data shall not be advised additionally.
