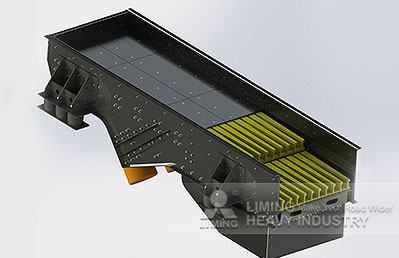

GF Series Vibrating Feeder

Feeding Size:
Capacity:
Processing materials
River Rock, Granite, Basalt, Quartz, Iron Ore,Diabase,Limestone,Calcite,Barite, Talcom, Gypsum, Bentonite, etc.

Overview





GF Series Vibrating Feeder is specially manufactured for certain working occasion.Generally it will be used as feeding tools of primary crusher, the max feeding capacity can be 450tph and max feeding size can be 700mm. With convenient operation and maintenance, it can match up with the most advanced feeding equipment around the world.






Learn More About Liming® GF Series Vibrating Feeder



1, With advanced design theory and manufacturing skills, the max vibration force of the GF Series Vibrating Feeder can be 4.0G, and the capacity has been increased by 20%.

2, Use the vibrating motor as the vibration source, GF Series Vibrating Feeder is efficient, reliable, and convenient.

3, Since the grizzly bars are welded by NM wear-resistant steel and common steel, GF Series Vibrating Feeder has longer service life, better pre-screening performance, as well as easily installation and adjustment.

4, The is no any weld point at the side plate of GF Series Vibrating Feeder to avoid any hidden splitting problem caused by welding.

5, The support spring of GF Series Vibrating Feeder is rubber spring. Comparing with the common steel spring, rubber spring can bear more load and guarantee longer service life. Also with the rubber spring, the operation of feeder is stable with less noise.


Working Principle



GF Series Vibrating Feeder is driven by the vibrating motor. The material pushed slowly and evenly from the input end to the output end. Meanwhile, the material will be screened by the grizzly bars to make the stone more even.






GF Series Vibrating Feeder Specifications

Specifications - Technical Data

Model Feeding Chute Size (mm) Max Feeding Size(mm) Max Capacity(t/h) Power KW(HP) Overall Dimension(LxWxH) (mm) Weight(t)
GF0942 900×4200 500 280 2×3.7(5) 4200×1520×1480 3
GF0942M 3
GF0942S 3.3
GF1245 1200×4500 700 450 2×7.5(5) 4650×1870×1555 4.6
GF1245M 4.6
GF1245S 4.9


Notice: Any change of GF Series Vibrating Feeder technical data shall not be advised additionally.
